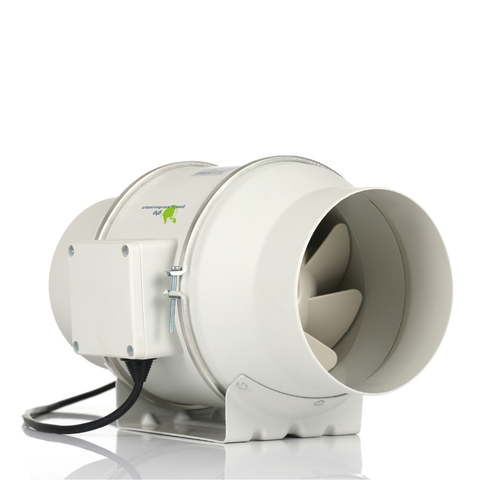

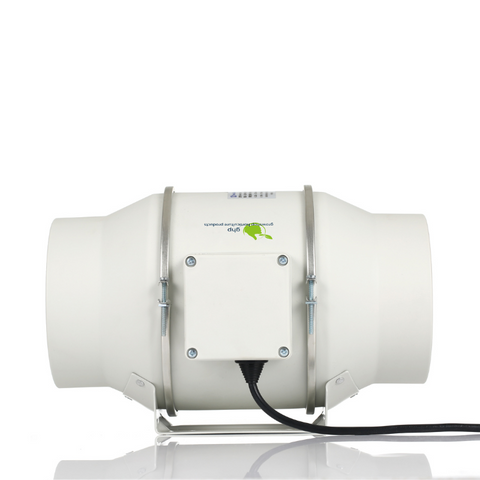

150mm Mixed Flow Fan - 530 Cubic Metres Per Hour with Speed Controller

150mm Mixed Flow Fan - 530 Cubic Metres Per Hour with Speed Controller

Engineered for efficient, consistent, reliable ventilation for grow rooms, hydroponic systems, HVAC setups, and industrial applications. Delivering an impressive 530 cubic metres per hour of airflow, enhance your ventilation system with this high performance Mixed Flow Fan

Free Air Performance

  • Full speed 530 Cubic Metres Per Hour - 147 Litres Per Second
  • Lowest setting on the speed controller 410 Cubic Metres Per Hour - 114 Litres Per Second

Specifications

  • Variable speed control with off position, Fan always starts on full speed then slows to the preset speed on controller. The speed controller will slow the fan by up to 50% of full speed
  • 54w Thermally protected 2550 rpm AC motor at High Speed and 44w 1850 rpm at Low speed with automatic reset
  • Static pressure 300 Pa at High speed and 240 Pa at Low speed
  • Rated at 33 dBA at 3 Metres from Fan at High speed and 29 dBA at Low speed
  • Japanese NMB Ball Bearing Motor rated at 50,000 hour continuous operation
  • Fan blades designed using the latest fluid dynamics for optimal airflow and pressure
  • Eco friendly ABS Durable Housing
  • Operating temperature range: -20℃ to 60℃
  • Supplied with pre-wired 230v Lead & Plug, also includes mounting bracket

Mixed flow fans allow air to flow in both axial and radial directions in relation to the shaft. These powerful inline fans have been designed to produce higher working pressures for applications that require higher airflows and air pressure like carbon filters. Widely used, it is common to find them on HVAC systems, grow rooms or grow tents which require high pressure, good air flow with low relative noise levels. Simple to install and mountable at the beginning, middle or the end of extraction - ventilation systems.
