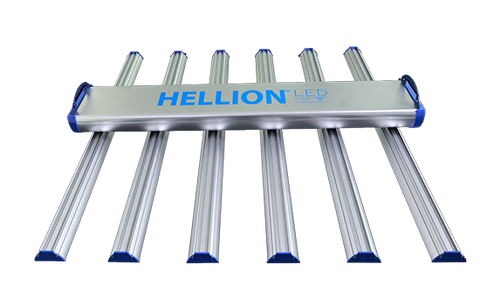

LED 500w EVO 3.1 μmol/j - 6 Bar Grow Light with Controllable Spectrums Veg-Bloom-UV - Hellion

LED 500w EVO 3.1 μmol/j - 6 Bar Grow Light with Controllable Spectrums Veg-Bloom-UV - Hellion

Hellion LED grow light with Samsung EVO industry leading LED diodes, for superior plant growth & flowering - fruiting. Precise spectrum control via Sosen premium drivers with 3 x independently controlled driver channels with variable dimming across Veg - Bloom - UV light spectrums for true spectral diversity

  • Main LED Diodes Samsung Lm301h EVO 3000k & 5000k with Lm301h 3000k & 5000k with a total Efficacy of 3.1 μmol/j
  • Secondary LED Diodes Osram 660nm Red & 730nm Far Red plus Seoul 395nm - UV all 50,000 hour rated

Output & Coverage Specs

            • PPF 1,475 µmol/s - BPF 1,550 µmol/s Bioactive Photon Flux/280 - 800nm includes PAR + UV/Near Blue + Far Red/Near IR
            • Coverage area 1000mm x 1000mm up to 1200mm x 1200mm, Hanging height 450mm to 600mm can be operated at 300mm to 450mm when channels dimmed to 75% or less

            High LED diode count for professional performance

                • 360 x Samsung Lm301h 3000k
                • 72 x Samsung Lm301h EVO 3000k
                • 432 x Samsung Lm301h 5000k
                • 144 x Samsung Lm301h EVO 5000k
                • 48 x Osram 660nm
                • 12 x Osram 730nm
                • 24 x Seoul 395nm

                The Hellion VS3 by Adjust-A-Wings features a meticulously engineered diode layout, designed by the brand’s founder using decades of horticultural lighting expertise. By integrating the latest advancements in plant science and photobiology, this layout ensures maximum light uniformity and spectral precision.

                Powered by the world’s most efficient LED diodes from Samsung, OSRAM, and Seoul, with only TOP bin diodes being used the fixture delivers an exceptional full spectrum output. All diode manufacturers offer many levels/grades of the same model diode. Adjust-A-Wings insists that any Hellion LED is manufactured with only TOP bin highest grade diodes and that's guaranteed !. Couple this with independent Veg, Bloom, and UV channels, growers gain complete control over plant development at every stage from propagation to flowering - fruiting.

                Driver & LED Light Bar Specs

                    • Sosen top of the range LED driver, Trusted by lighting professionals worldwide for performance, precision and durability with a Sosen factory 8 Year reliability warranty. Hellion LED grow lights are fitted with 3 x Sosen Auto voltage sensing 100 - 265v drivers with precise spectrum dimming control
                    • 0 - 10v RJ11 control ports for use with the Hellion Master Controller. The controller allows you to automate and change your plants spectrum all day long with a simple set and forget strategy. Click HERE to find out more on the controller

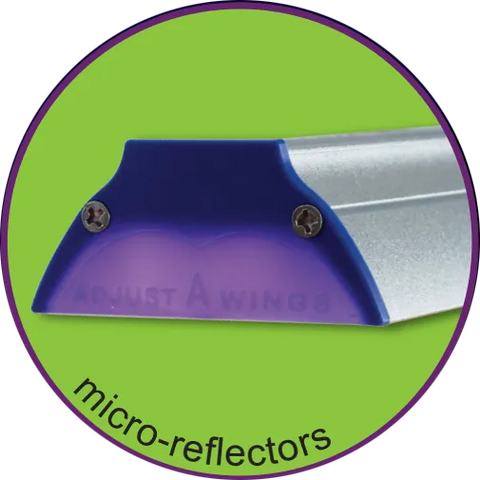

                    • LED bars with unique Adjust-A-Wings designed internal micro reflectors for intense and deeper penetration while providing an extremely even consistent light distribution
                    • LED bars made of High grade aluminium for maximum heat sink performance with passive fin design for maximum heat dissipation
                    • Easy assembly - The light bars simply click in and clip out with no need to connect any cables
                    • Adjustable rope ratchet hangers supplied with unit
                    • IP wet location ratings - Drivers IP67 - LED Bars IP65 - Driver housing IP20
                    • Unit dimensions 900mm x 850mm includes an allowance for power cable entry and access to the spectrum adjusting dials

                      Hellion VS3 Horticultural LED the ultimate combination of power, efficiency and versatility using only the best Samsung LM301h EVO diodes with further LM301h 3k & 5k diodes, Osram 660nm Red & Osram 730nm Far Red plus Seoul 395 UV 50,000 hour rated LED diodes. Unique Adjust-A-Wings designed micro reflectors for even intense and deeper penetration

                      Dial in the perfect spectrum equipped with 3 x independent channels Veg + Bloom + UV for spectral diversity and control. The Veg channel is full-spectrum, rich in Blue. Bloom is also full-spectrum, rich in Red + Far Red, and UV provides UVA + Near Blue for a fine finish!

                      • Propagation - Gradually increase the intensity of the vegetative channel as your plants develop. Some UV can help to strengthen seedlings and cuttings.
                      • Vegetative growth - Blue dominant spectrum helps to keep plants squat and bushy, making them easier to illuminate efficiently during the bloom phase.
                      • Bloom - Increase the Bloom channel after the initial development of flowers. The extra Red and Far Red promote branching and help to increase flower size and density.
                      • Flower - Fruit ripening - Additional UV during the final few weeks can help to boost flavours, colours and essential oils. Try leaving all channels on full and raising the fixture 50mm to 100mm if ceiling height permits.

                      We offer three different Hellion VS3 LED models 500W, 700W and 1000W. Please check unit dimensions to ensure that you have adequate space vertically and horizontally for your grow light. You may also want to consider the Hellion Master control if you want to dial in your perfect spectral recipe from sunrise to sunset across all 3 channels, simply set and forget

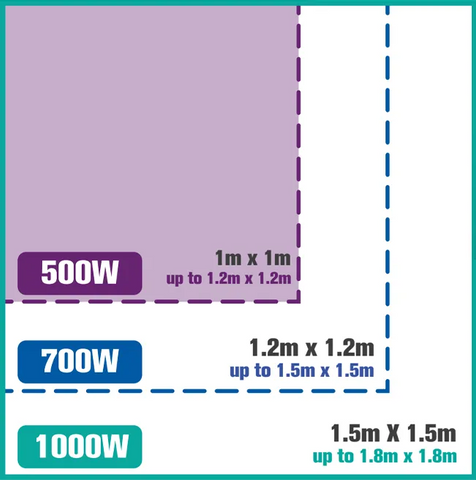

                      The Hellion VS3 - EVO LED units output data

                          EVO 500w PPF 1,475 µmol/s - BPF 1,550 µmol/s suitable area 1000mm x 1000mm up to 1200mm x 1200mm Click HERE to go straight to this LED

                          EVO 700w PPF 2,065 µmol/s - BPF 2,170 µmol/s suitable area 1200mm x 1200mm up to 1500mm x 1500mm Click HERE to go straight to this LED

                          EVO 1000w PPF 2,950 µmol/s - BPF 3,100 µmol/s suitable area 1500mm x 1500mm up to 1800mm x 1800mm Click HERE to go straight to this LED
