Carbon Filter Kit 150mm x 300mm - Centrifugal Fan with Speed Controller & 10 Metres of Ducting

Carbon Filter Kit 150mm x 300mm - Centrifugal Fan with Speed Controller & 10 Metres of Ducting

Optimise your grow rooms air quality with our high-performance Carbon Filter ventilation kit. Designed to effectively remove odours, filter air contaminants, and maintain fresh airflow, this kit is perfect for hydroponic setups, grow tents, or indoor cultivation spaces. With efficient air purification, powerful airflow, and easy installation, this complete kit ensures optimal ventilation for healthier plant growth.

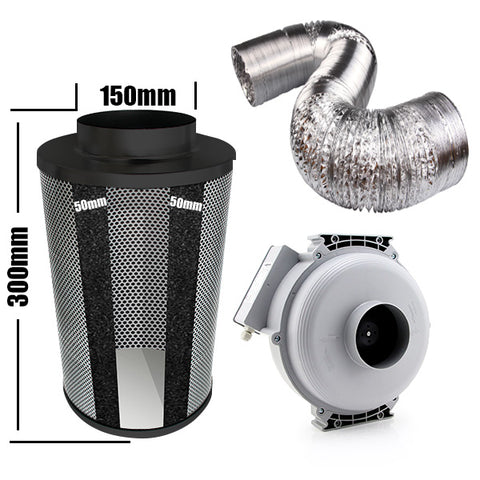

Kit Contains

  • 150mm Centrifugal Plastic Fan - 533 Cubic Metres Per Hour with Speed Controller
  • Pro Grow Carbon Filter 150mm x 300mm - 50mm Carbon Bed depth - No1 Grade 4/12 Australian Carbon
  • Ducting 150mm x 10 Metres - Black inside Silver foil outside

Carbon Filter Details

  • 600 Cubic metre per hour maximum airflow
  • Highly effective, low density Australian virgin carbon with a 50mm carbon bed depth
  • Machine packed carbon enables 100% filtered air flow
  • Inner and outer mesh provides 51% open area allowing increased air flow
  • Unique dust attracting black pre-filter sock is included and comes with two easy-to-fit elastic pre-filter straps. This should be washed periodically to maintain the filters life
  • Black powder coated top flange and base, switchable for longer filter life

Using only sieved and de-dusted high grade 4/12 Australian activated carbon ensures the highest achievable airflow ratings. Every batch is analysed and tested to ensure it meets 950ID or higher. Every canister is weighed after manufacture to ensure consistency with every single filter made. Expect a minimum of 2 years life and up to five years life span in low humidity environments.

Each particle, or granule, of Carbon provides a large surface area, or pore structure, allowing contaminants the maximum possible exposure to the active sites within the filter media. One gram of activated carbon has a surface area in excess of 3,000 m2. Active charcoal-carbon filters are extremely effective at removing volatile organic compounds (VOCs). Carbon filters have the ability to scrub the smell from the air. Therefore, when a smell passes through the carbon, it is completely neutralized. In fact, the filter is capable of not only removing smells, but will also remove other impurities from the air.

Pro Grow carbon has been independently Analysed in a laboratory before the filter is manufactured to ensure it has a minimum 20% butane absorption and will provide the lightest least restrictive air flow and also deliver maximum impurity filtration.

Centrifugal Fan Details

Highly efficient, consistent, reliable ventilation for grow rooms, hydroponic systems, HVAC setups, and industrial applications. Equipped with a 110w thermally protected motor with automatic thermal reset and aerodynamic backward curved blades inside a double skinned insulated housing.

Fan specifications

  • 533 Cubic Metres Per Hour - 148 Litres Per Second - Static pressure 392 Pa
  • Variable speed control with off position, Fan always starts on full speed then slows to the preset speed on controller. The speed controller will slow the fan by up to 50% of full speed
  • 110w Thermally protected 2450 rpm AC motor with automatic thermal reset
  • ABS Durable double layered housing with sound reducing insulation in between the layers and noise reduction holes between first and second layers
  • Quiet operation rated at 43.9 dBA at 3 Metres
  • NSK Ball Bearing Motor rated at 50,000 hour continuous operation
  • Operating temperature range: -30℃ to 60℃
  • Pre-wired with 230v lead & plug
  • Includes mounting bracket

Centrifugal fans are essential mechanical devices for air movement, designed to efficiently increase airflow speed and volume using rotating impellers. These fans direct outgoing air precisely, making them ideal for ventilation, air purification, and industrial applications.

By utilizing the kinetic energy of impellers, centrifugal fans boost air volume, ensuring consistent airflow even when encountering resistance from ducts, dampers, and other components. These fans displace air radially, offering quiet, durable, and reliable operation across diverse conditions.

Key Benefits of Centrifugal Fans

  • Constant Displacement: Maintains a steady airflow volume at a consistent fan speed
  • Superior Efficiency: More energy-efficient compared to positive-displacement blowers, reducing overall operating costs
  • HVAC Industry Standard: Widely used in ventilation systems, HVAC setups, industrial processes, and air pollution control systems
  • Versatile Applications: Ideal for transporting air, gases, and materials in commercial and residential environments.

As one of the most commonly used fans, centrifugal fans continue to be the preferred choice for HVAC systems, air filtration, and industrial ventilation, ensuring optimal airflow management for various applications.
