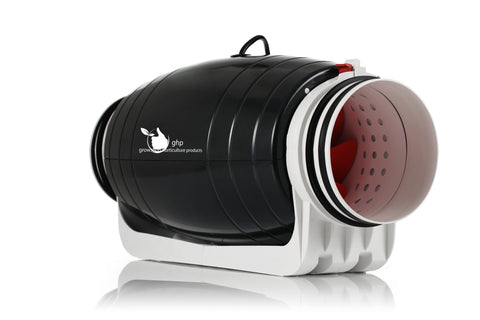

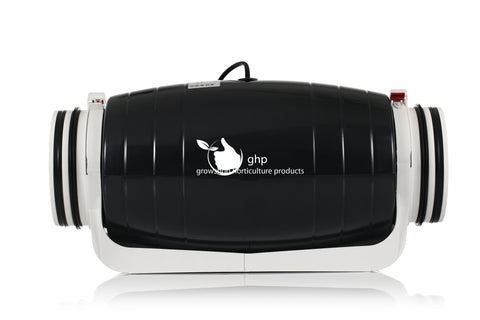

150mm Mixed Flow Fan Super Silent - 530 Cubic Metres Per Hour with Speed Controller

150mm Mixed Flow Fan Super Silent - 530 Cubic Metres Per Hour with Speed Controller

  • Save $170

Engineered for efficient, quiet, consistent, reliable ventilation for grow rooms, hydroponic systems, HVAC setups, and industrial applications. Delivering an impressive 530 cubic metres per hour of airflow, enhance your ventilation system with this Super Silent mixed flow fan with unique internal backdraft prevention damper design

Free Air Performance

  • Full speed 530 Cubic Metres Per Hour - 147 Litres Per Second
  • Lowest setting on the speed controller 410 Cubic Metres Per Hour - 114 Litres Per Second

Specifications

  • Variable speed control with off position, Fan always starts on full speed then slows to the preset speed on controller. The speed controller will slow the fan by up to 50% of full speed
  • 50w Thermally protected 2550 rpm AC motor at High Speed and 43w 1850 rpm at Low speed with automatic reset
  • Static pressure 300 Pa at High speed and 240 Pa at Low speed
  • Low noise rating of 31 dBA at 3 Metres from Fan at High speed and 26 dBA at Low speed
  • Japanese NMB Ball Bearing Motor rated at 50,000 hour continuous operation
  • Fan blades designed using the latest fluid dynamics for optimal airflow and pressure
  • Internal backdraft damper designed to prevent air returning and insects etc entering the environment when the fan is turned off
  • Eco friendly ABS Durable double layered housing with sound reducing cotton insulation in between the layers and noise reduction holes between first and second layers
  • Operating temperature range: -20℃ to 60℃
  • Supplied with pre-wired 230v Lead & Plug, also includes mounting bracket

Mixed flow fans allow air to flow in both axial and radial directions in relation to the shaft. These powerful inline fans have been designed to produce higher working pressures for applications that require higher airflows and air pressure like carbon filters. Widely used, it is common to find them on HVAC systems, grow rooms or grow tents which require high pressure, good air flow with low relative noise levels. Simple to install and mountable at the beginning, middle or the end of extraction - ventilation systems.



Shipping Notice

Please note our Free shipping policy does not apply to this item due to its size and delivery costs

We do offer competitive shipping rates based on your location, which are automatically calculated at the checkout

Some rural areas may incur additional rural delivery fees we will notify you before dispatch if this applies to your location
