Carbon Filter Kit 100mm x 500mm - Mixed Flow Fan with Speed Controller & 10 Metre Ducting

Carbon Filter Kit 100mm x 500mm - Mixed Flow Fan with Speed Controller & 10 Metre Ducting

Optimise your grow rooms air quality with our high-performance Carbon Filter ventilation kit. Designed to effectively remove odours, filter air contaminants, and maintain fresh airflow, this kit is perfect for hydroponic setups, grow tents, or indoor cultivation spaces. With efficient air purification, powerful airflow, and easy installation, this complete kit ensures optimal ventilation for healthier plant growth.

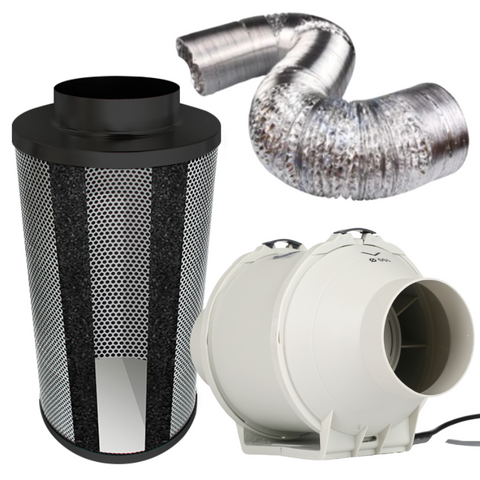

Kit Contains

  • 100mm Mixed Flow Fan - 198 Cubic Metres Per Hour with Speed Controller
  • Pro Grow Carbon Filter 100mm x 500mm - 35mm Carbon Bed depth - No1 Grade 4/12 Australian Carbon
  • Ducting 100mm x 10 Metres - Black inside Silver foil outside

Carbon Filter Details

  • 510 Cubic metre per hour maximum airflow
  • Highly effective, low density Australian virgin carbon with a 35mm carbon bed depth
  • Machine packed carbon enables 100% filtered air flow
  • Inner and outer mesh provides 51% open area allowing increased air flow
  • Unique dust attracting black pre-filter sock is included and comes with two easy-to-fit elastic pre-filter straps. This should be washed periodically to maintain the filters life
  • Black powder coated top flange and base, switchable for longer filter life

Using only sieved and de-dusted high grade 4/12 Australian activated carbon ensures the highest achievable airflow ratings. Every batch is analysed and tested to ensure it meets 950ID or higher. Every canister is weighed after manufacture to ensure consistency with every single filter made. Expect a minimum of 2 years life and up to five years life span in low humidity environments.

Each particle, or granule, of Carbon provides a large surface area, or pore structure, allowing contaminants the maximum possible exposure to the active sites within the filter media. One gram of activated carbon has a surface area in excess of 3,000 m2. Active charcoal-carbon filters are extremely effective at removing volatile organic compounds (VOCs). Carbon filters have the ability to scrub the smell from the air. Therefore, when a smell passes through the carbon, it is completely neutralized. In fact, the filter is capable of not only removing smells, but will also remove other impurities from the air.

Pro Grow carbon has been independently Analysed in a laboratory before the filter is manufactured to ensure it has a minimum 20% butane absorption and will provide the lightest least restrictive air flow and also deliver maximum impurity filtration.

Mixed Flow Fan Details

Engineered for efficient, consistent, reliable ventilation for grow rooms, hydroponic systems, HVAC setups, and industrial applications. Delivering an impressive 198 cubic metres per hour of airflow, enhance your ventilation system with this high performance Mixed Flow Fan

Free Air Performance

  • Full speed 198 Cubic Metres Per Hour - 55 Litres Per Second
  • Lowest setting on the speed controller 165 Cubic Metres Per Hour - 45 Litres Per Second

Specifications

  • Variable speed control with off position, Fan always starts on full speed then slows to the preset speed on controller. The speed controller will slow the fan by up to 50% of full speed
  • 26w Thermally protected 2200 rpm AC motor at High Speed and 23w 1850 rpm at Low speed with automatic reset
  • Static pressure 456 Pa at High speed and 131 Pa at Low speed
  • Rated at 31 dBA at 3 Metres from Fan at High speed and 26 dBA at Low speed
  • Japanese NMB Ball Bearing Motor rated at 50,000 hour continuous operation
  • Fan blades designed using the latest fluid dynamics for optimal airflow and pressure
  • Eco friendly ABS Durable Housing
  • Operating temperature range: -20℃ to 60℃
  • Supplied with pre-wired 230v Lead & Plug, also includes mounting bracket

Mixed flow fans allow air to flow in both axial and radial directions in relation to the shaft. These powerful inline fans have been designed to produce higher working pressures for applications that require higher airflows and air pressure like carbon filters. Widely used, it is common to find them on HVAC systems, grow rooms or grow tents which require high pressure, good air flow with low relative noise levels. Simple to install and mountable at the beginning, middle or the end of extraction - ventilation systems.
